Fire trucks operate through the coordinated function of multiple systems to achieve water supply, pressure generation, and fire suppression. Understanding these principles helps fire crews operate effectively in emergency situations.

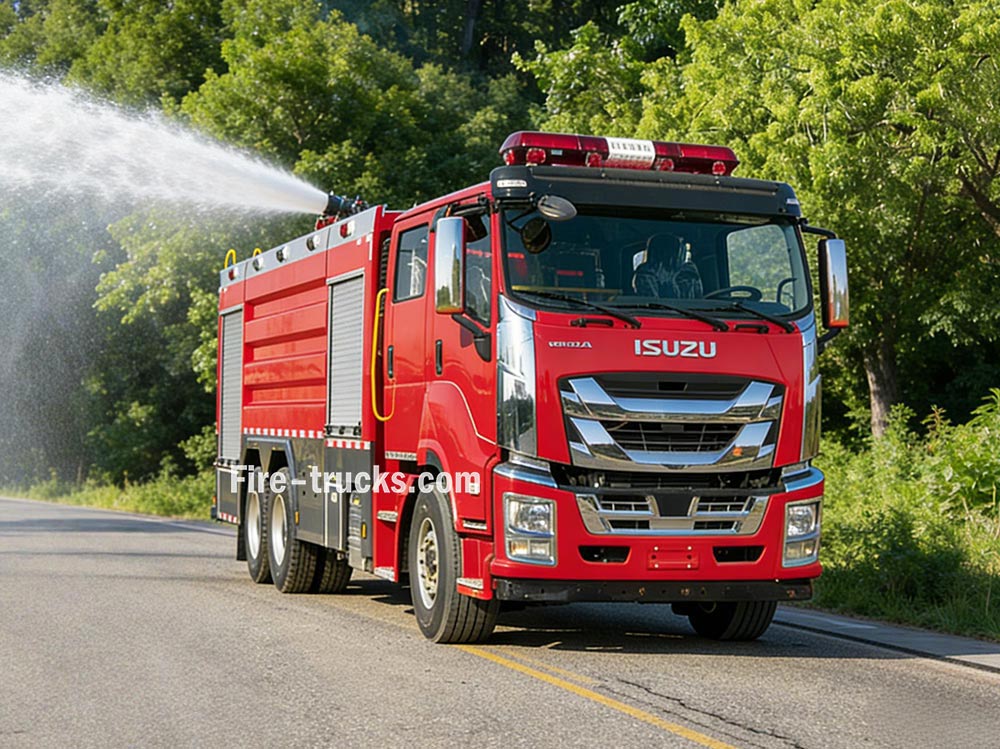

isuzu ladder fire tender truck

»Ⅰ. How Fire Trucks Work :

▪ A. Pump System: The Heart of Fire Suppression:

The heart of any fire truck is its pump. This high-powered unit draws water from the onboard tank or an external source—such as a fire hydrant, lake, or pond and delivers it through hoses under high pressure. The most commonly used pump is the centrifugal pump, which relies on a rotating impeller to pressurize and move water.

Firefighters control the water flow using a series of levers and gauges on the pump panel. They can adjust pressure as needed and direct water to multiple hose lines simultaneously.

Pump Type	Characteristics	Best Application
Single-stage centrifugal pump	High flow, moderate pressure	General municipal firefighting
Two-stage centrifugal pump	Switchable between volume and pressure	High-rise buildings, long hoses lay
Multi-stage pump	Very high pressure	Industrial facilities, foam systems

▪ Key Pump Parameters:

› Flow rate: 1,200 - 6,000 liters per minute (depending on model)

› Maximum pressure: 1.0 - 2.5 MPa (10-25 bar)

› Priming time: ≤30 seconds

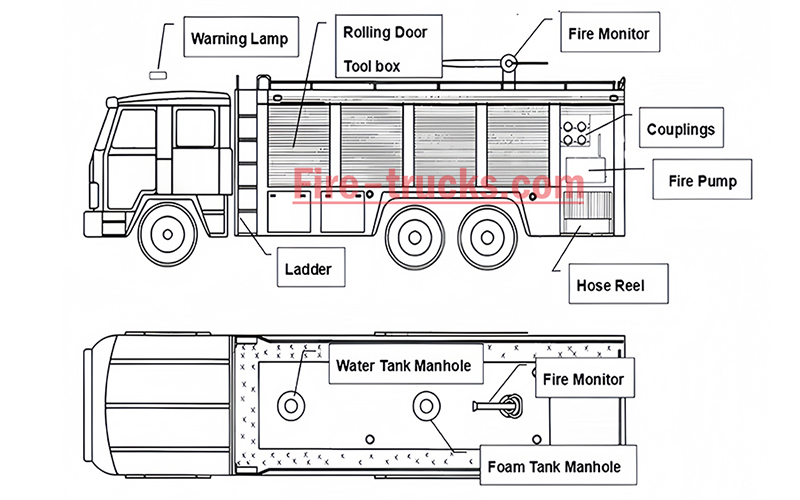

ISUZU brush truck fire truck

▪ B. Water Tank and Storage System：

› Tank capacity: 500 - 1,500 gallons (approximately 2,000 to 6,000 liters), depending on vehicle size and type

› Tank material: Corrosion-resistant stainless steel or coated carbon steel

› Internal baffles: Multiple compartments with anti-surge design to control water movement during emergency response

› Filling time: ≤3 minutes via fire hydrant or drafting

› Water level indicator: Visual gauge on tank side; optional cab display

The tank is constructed from corrosion-resistant materials, typically stainless steel or coated carbon steel, with internal baffle plates that control water surge during emergency response driving.

▪ C. Hose and Nozzle Systems

Fire trucks carry various hoses with different functions:

› Attack hose: 1.5 - 2.5 inches diameter — delivers water directly to the fire source

› Supply hose: 4 - 5 inches in diameter — transports water from hydrants or other pumpers

› Booster hose: small diameter on reel — used for small fires such as grass or vehicle fires

At the end of the hose, the nozzle allows firefighters to control the water stream, adjusting pressure, pattern, and direction based on the type of fire.

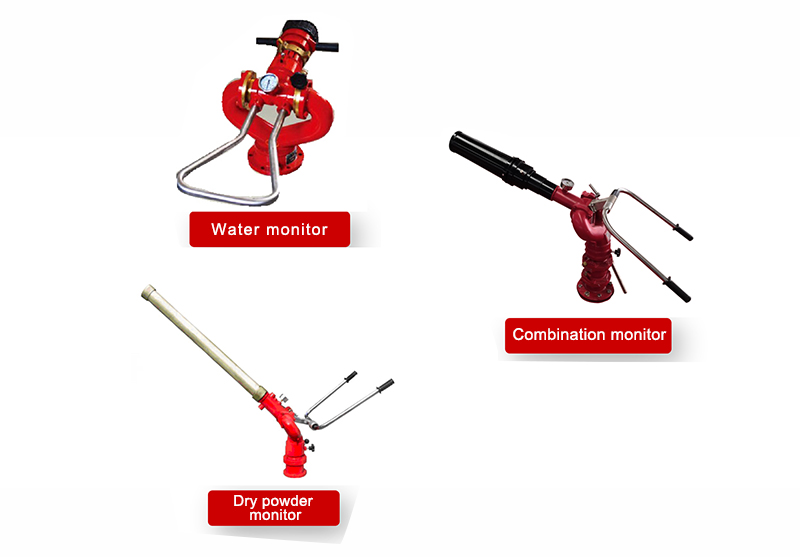

▪ D. Fire Monitor

› Water monitor: Delivers high-volume water stream for large-scale fire suppression; fixed or remotely operated

› Dry powder monitor: Discharges dry chemical powder for flammable liquid, gas, and electrical fires

› Combination monitor: Capable of discharging both water and dry powder; switches between media as needed

fire truck cannon

▪ E. Engine, Powertrain and Pump Control System

Engine and Powertrain System

● Engine output: 300 - 600 horsepower — powers both vehicle mobility and fire suppression systems

● Engine type: Large diesel engine — ensures reliable performance on city streets or rough terrain under full load

● Power Take-Off (PTO): Redirects engine power to operate the water pump, aerial ladder, or other hydraulic systems

Control Panel

● Tachometer: Displays engine RPM for throttle adjustment

● Pressure gauges: Monitors low, medium, and high pressure at different discharge points

● Vacuum gauge: Shows suction pressure during drafting operations

● Liquid level indicator: Displays water tank and foam tank remaining volume

● Push-button switches & electronic throttle: Controls PTO engagement, pump start/stop, valve operation, and engine speed

» Ⅱ.Standard Operating Principles :

▪ A. Water Supply

› Tank water: Open tank-to-pump valve → Engage PTO → Set throttle → Charge hoses

› Hydrant: Connect supply hose → Open hydrant → Open intake valve → Monitor tank level

› Drafting: Position within 10m of water source → Deploy hard suction hose → Prime pump → Monitor temperature

▪ B. Firefighting Operations

› Charge attack lines at appropriate pressure

› Monitor pressure gauges

› Adjust throttle to maintain pressure

› Operate the deck

Typical pressures: Attack hose 0.7-1.0 MPa | Deck gun 1.0-1.4 MPa | Aerial 1.0-1.2 MPa gun

▪ C. Post-Fire

› Shut down discharge lines

› Disengage PTO

› Drain pump and hoses

› Refill tank

› Conduct equipment inventory

Post-fire maintenance: Flush pump, inspect hoses, check valves, document usage

» Ⅲ. Comparison of Fire Truck Types :

Type	Primary Function	Best Application
Water Tender	Water supply, hose line attack	Municipal firefighting, structural fires
Foam Tender	Foam concentrate transport and proportioning	Industrial, airport, flammable liquid fires
Aerial (Ladder/Platform)	Elevated access, rescue, master streams	High-rise fires, commercial buildings
Wildland	Off-road capability, smaller tank	Forest, brush, grassland fires

From high-rise districts to industrial zones, from highways connecting cities to rural communities, CS TRUCKS fire trucks provide reliable, efficient fire suppression and rescue solutions for diverse fire protection needs.
