A fire truck pump system is only as reliable as its components. From drawing water from a source to discharging it at high pressure, every accessory plays a critical role. This guide covers fire truck five key accessory categories: primers, ball valves, globe valves, foam proportioners, and hydraulic control systems.

Understanding these components helps firefighters maintain their equipment and choose the right accessories for specific applications.

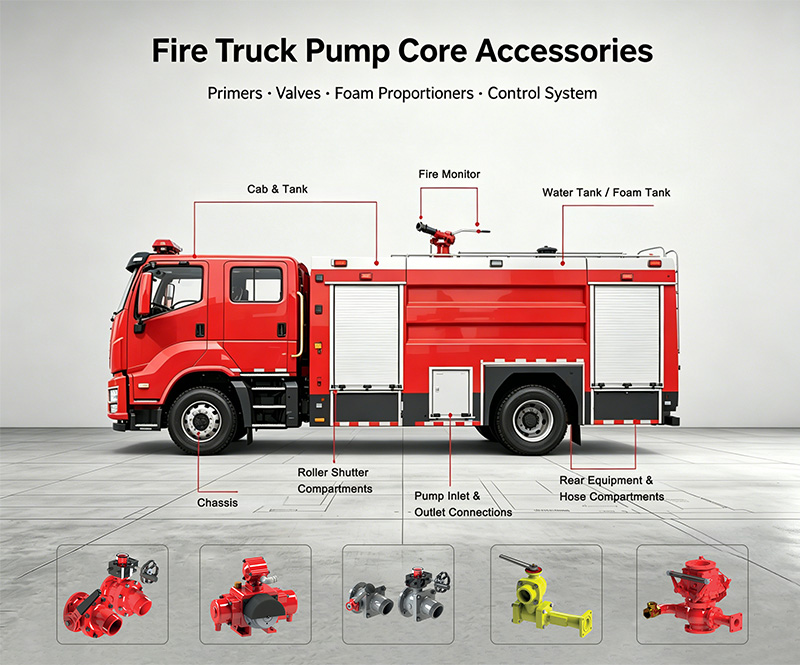

fire truck pump working principle diagram

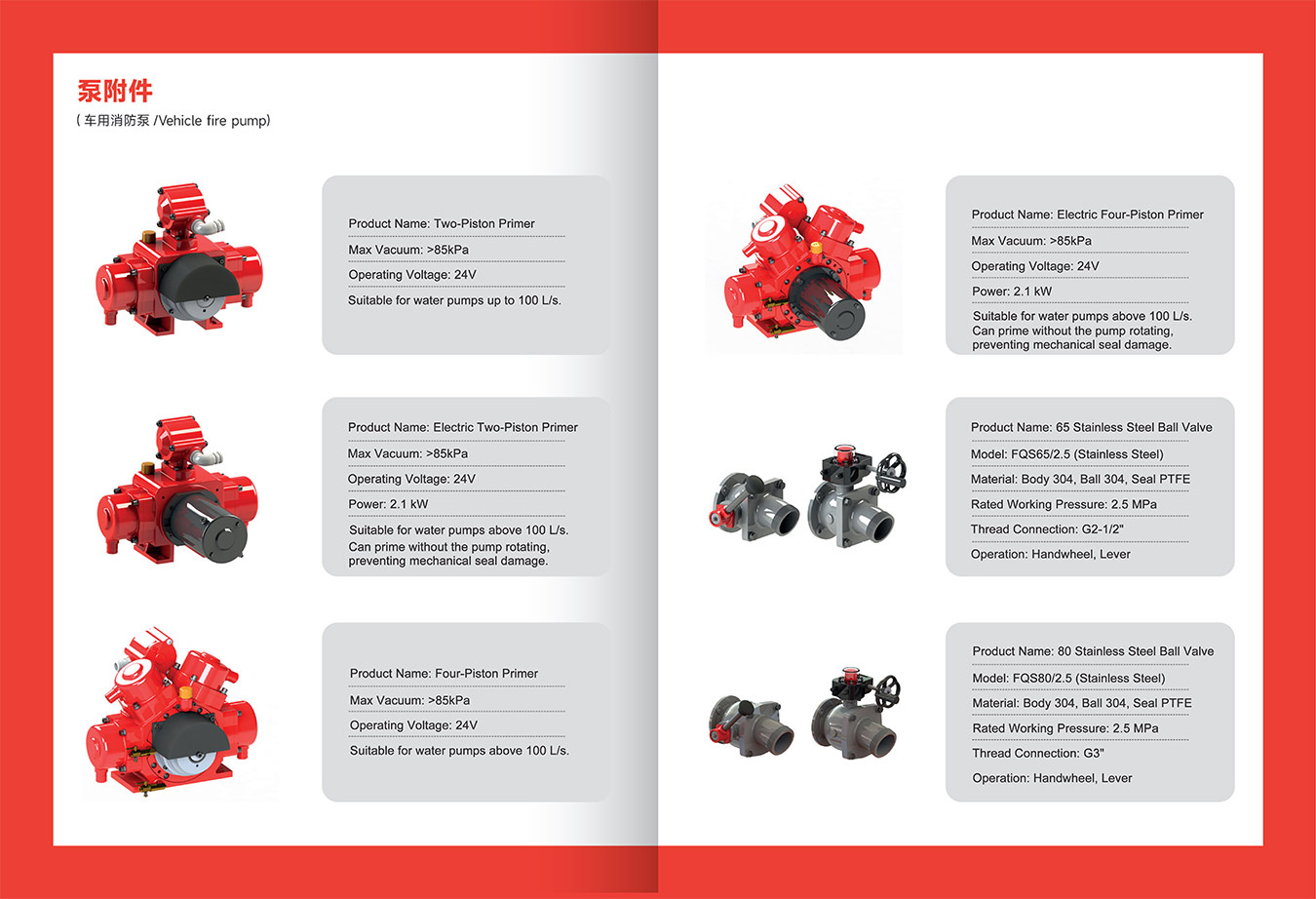

I. Primer Series (Vacuum Priming Devices)

Primers are essential for drawing water from lakes, rivers, or other static sources when a hydrant is not available. They remove air from the pump and suction hose, allowing atmospheric pressure to push water into the pump.

Product Overview

Product	Max Vacuum	Voltage	Power	Suitable Pump Size
2-piston primer	>85kPa	24V	-	Below 100 L/s
Electric 2-piston primer	>85kPa	24V	2.1KW	Below 100 L/s
4-piston primer	>85kPa	24V	-	Above 100 L/s
Electric 4-piston primer	>85kPa	24V	2.1KW	Above 100 L/s

Key Feature: Electric Primers

Electric primers offer a significant advantage — they can prime the pump without the pump rotating. This protects the mechanical seal from dry running damage. When a standard primer requires the pump to spin, the electric version works independently, extending seal life.

how does a fire pump primer work

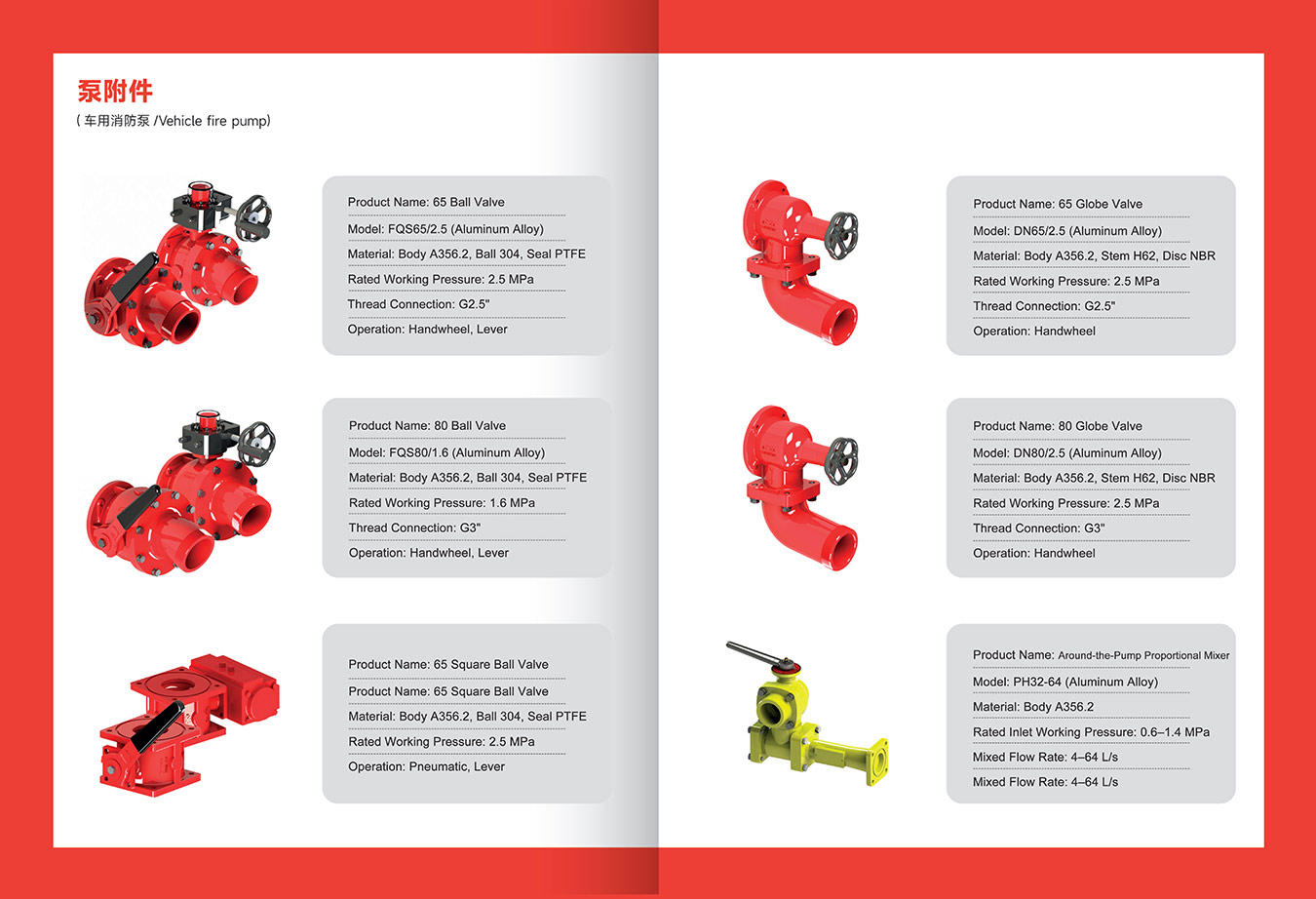

II. Ball Valve Series (Flow Control)

Ball valves control water flow through hoses and discharge outlets. They are designed for quick on/off operation with a simple 90° turn.

Stainless Steel Ball Valves

Model	Material	Rated Pressure	Thread	Operation
FQS65/2.5	Body & ball: 304 stainless steel; Seal: PTFE	2.5 MPa	G2-1/2"	Handwheel / Lever
FQS80/2.5	Body & ball: 304 stainless steel; Seal: PTFE	2.5 MPa	G3"	Handwheel / Lever

Aluminum Alloy Ball Valves (Lighter weight)

Model	Material	Rated Pressure	Thread	Operation
FQS65/2.5	Body: A356.2; Ball: 304; Seal: PTFE	2.5 MPa	G2.5"	Handwheel / Lever
FQS80/1.6	Body: A356.2; Ball: 304; Seal: PTFE	1.6 MPa	G3"	Handwheel / Lever
FQS65/2.5 Square	Body: A356.2; Ball: 304; Seal: PTFE	2.5 MPa	-	Pneumatic / Lever

Ⅲ. Globe Valve Series (Pressure & Flow Regulation)

Unlike ball valves that are designed for on/off operation, globe valves allow precise control of flow rate and pressure. They are ideal for situations where gradual adjustment is needed.

Model	Material	Rated Pressure	Thread	Operation
DN65/2.5	Body: A356.2; Stem: H62; Seal: NBR	2.5 MPa	G2.5"	Handwheel
DN80/2.5	Body: A356.2; Stem: H62; Seal: NBR	2.5 MPa	G3"	Handwheel

When to Use a Globe Valve

Use globe valves at discharge points where fine pressure control is required, such as when filling another vehicle's tank or supplying a hose line at a specific pressure.

foam proportioner working principle on fire truck

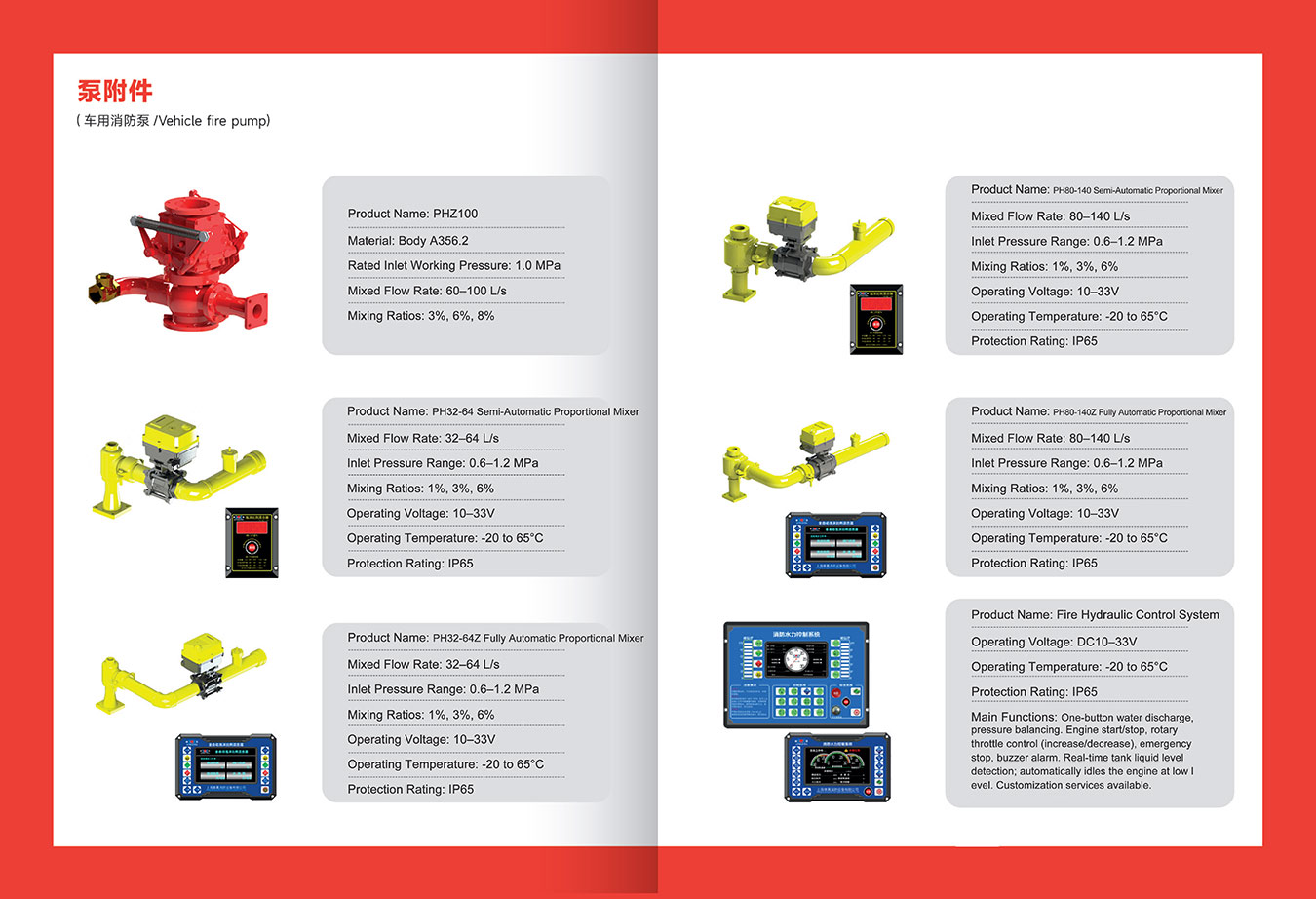

IV. Foam Proportioner Series (Foam Mixing Equipment)

Foam proportioners mix foam concentrate with water at precise ratios. This is essential for fighting Class B (flammable liquid) fires where water alone is ineffective.

Manual / Standard Proportioners

Model	Material	Inlet Pressure	Flow Range	Mixing Ratio
PH32-64	Body: A356.2	0.6-1.4 MPa	4-64 L/s	6%
PHZ100	Body: A356.2	1.0 MPa	60-100 L/s	3%, 6%, 8%

Semi-Automatic Proportioners

Model	Pressure	Flow Range	Mixing Ratios	Operating Voltage
PH32-64 Semi-auto	0.6-1.2 MPa	32-64 L/s	1%, 3%, 6%	10-33V DC
PH80-140 Semi-auto	0.6-1.2 MPa	80-140 L/s	1%, 3%, 6%	10-33V DC

Fully Automatic Proportioners

Model	Pressure	Flow Range	Mixing Ratios	Operating Voltage
PH32-64Z Auto	0.6-1.2 MPa	32-64 L/s	1%, 3%, 6%	10-33V DC
PH80-140Z Auto	0.6-1.2 MPa	80-140 L/s	1%, 3%, 6%	10-33V DC

Semi-Automatic vs. Fully Automatic

Semi-automatic: The operator selects the mixing ratio manually. The system maintains that ratio during operation.
Fully automatic: The system detects the flow rate and automatically adjusts the foam concentrate injection. This reduces operator workload and eliminates human error.

Environmental Ratings

All electronic proportioners feature:

IP65 protection – Dust-tight and protected against low-pressure water jets
Operating temperature: -20°C to +65°C – Suitable for most firefighting environments

V. Fire Hydraulic Control System (Intelligent Control Terminal)

This is the brain of the pump operation. It centralizes control of the entire water and foam delivery system.

Technical Specifications

Parameter	Value
Operating Voltage	DC 10-33V
Operating Temperature	-20°C to +65°C
Protection Rating	IP65

Core Functions

One-button water discharge – Starts the pump and opens the selected discharge valve with a single action. Includes automatic pressure balancing to maintain steady flow.

Engine control – Start/stop the engine, increase or decrease throttle speed, emergency stop, and audible alarm from the pump panel.

Tank level monitoring – Real-time display of water and foam tank levels. When the water level drops too low, the system automatically idles the engine to prevent pump damage.

Customizable – The system can be tailored to different truck models and operational requirements.

VI. Component Selection Guide

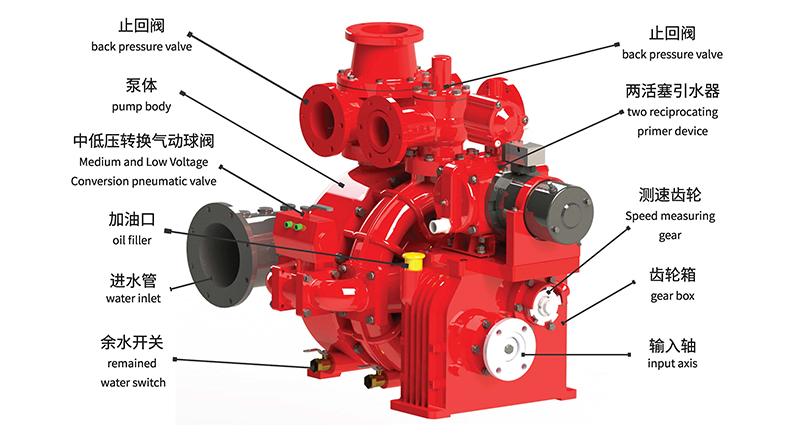

Fire truck fire pump structure diagram

Application	Recommended Accessories
Small pump (<100 L/s) with hydrant access	Standard 2-piston primer, stainless steel ball valves
Large pump (>100 L/s) from static water source	Electric 4-piston primer (protects mechanical seal)
Precise pressure control at discharge	Globe valves instead of ball valves
Foam operations (Class B fires)	Semi or fully automatic proportioner (PH series)
Full pump station integration	Hydraulic control system with one-button operation

VII. Maintenance Tips

Primers – Test the primer regularly. Ensure vacuum reaches 85kPa within the specified time. For electric primers, check electrical connections.

Ball valves – Operate valves fully open or fully closed. Avoid leaving them partially open, which can damage the PTFE seal over time.

Globe valves – Exercise the valve stem periodically to prevent seizing. Apply food-grade lubricant to threads if needed.

Foam proportioners – Flush with fresh water after each foam operation. Foam concentrate residue can crystallize and block internal passages.

Control system – Keep the control panel dry. Check all wiring connections annually. Test emergency stop functions monthly.

Conclusion

Fire truck pump accessories are not just add-ons — they are essential components that determine how well the pump performs in an emergency.

From a small municipal pumper to a large industrial foam tender, choosing the right accessories makes the difference between a pump that works and a pump that works when lives depend on it.
